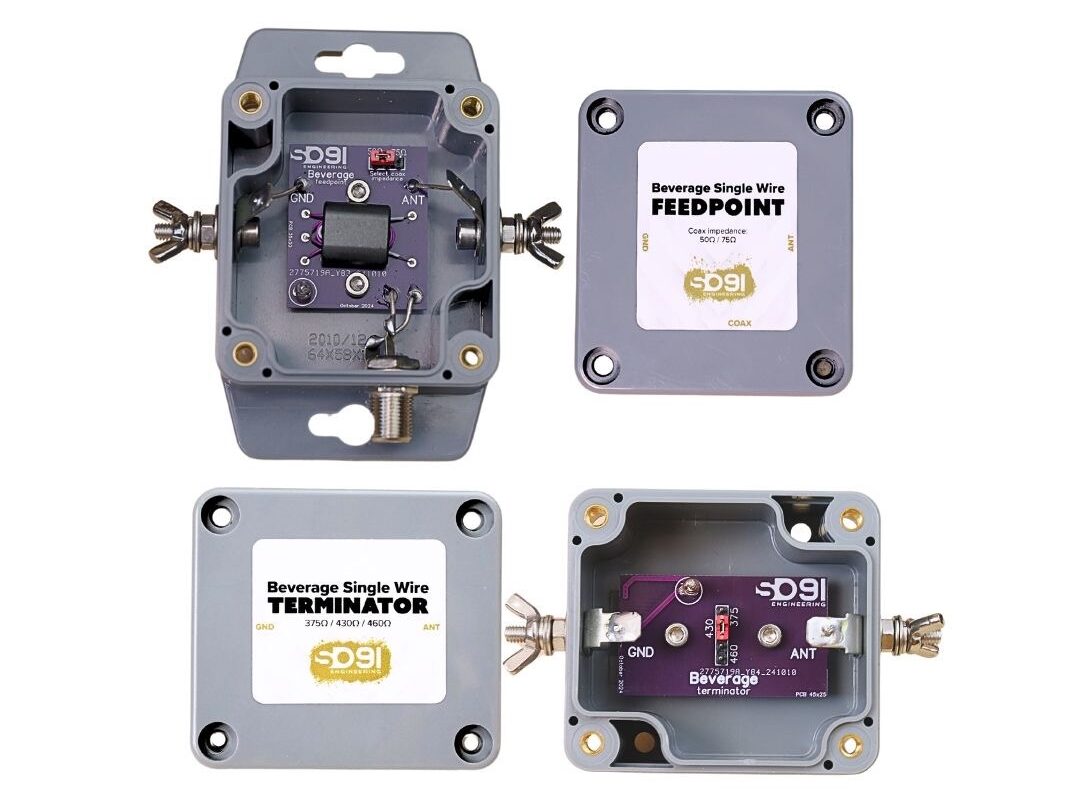

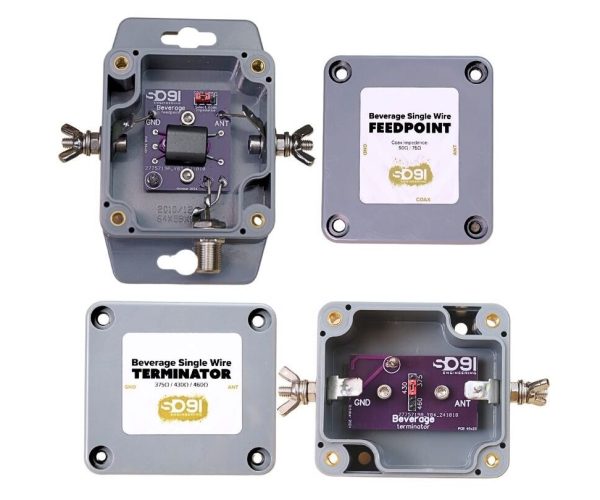

Beverage set
40 € per set
Multiband, directional reciving antenna used mainly on 160-80-40m bands.
It is an extremely cheap and simple antenna and offers huge benefits from
its use. You can find it at every large contest station!
Building time: no more than 1h!

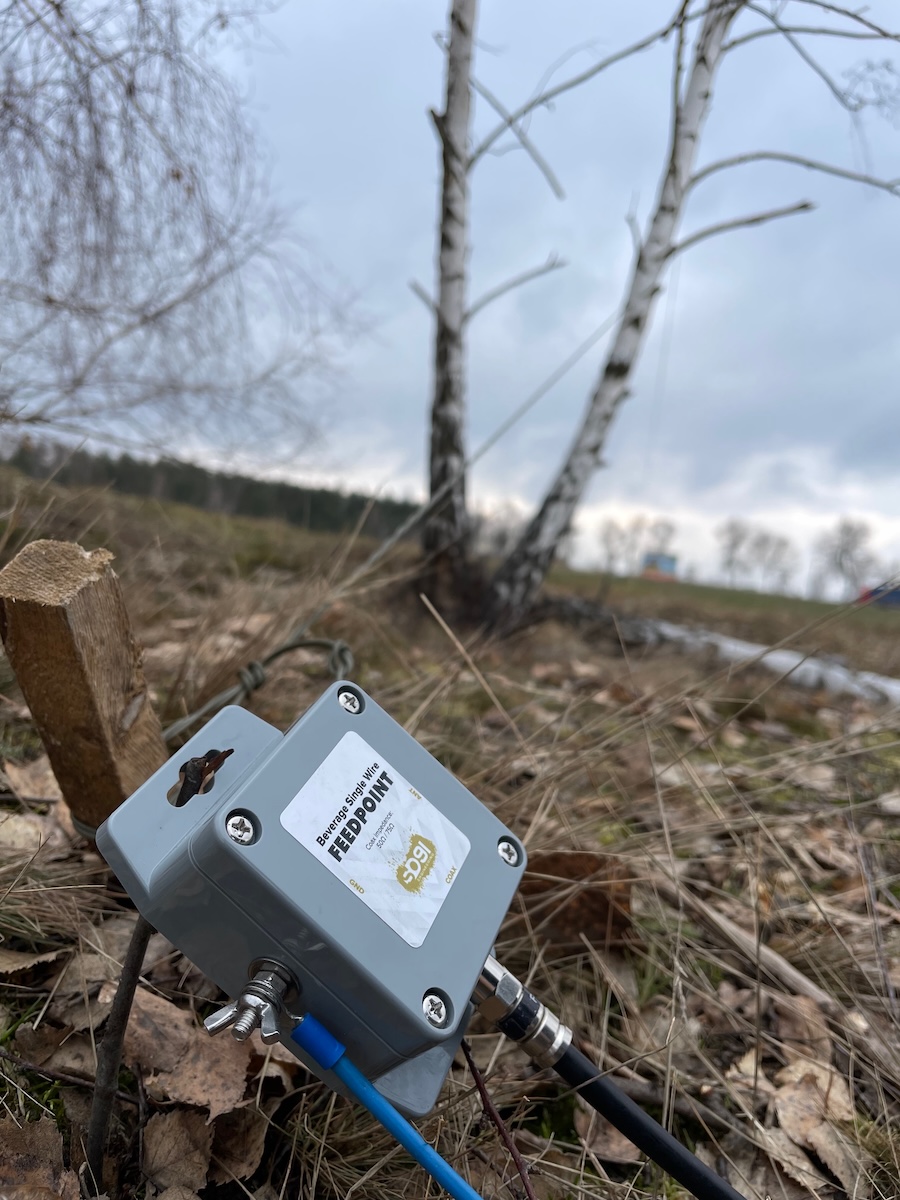

1. Drive the grounding rod into the ground, connect to the GND connector
in “Feedline” box.
in “Feedline” box.
2. Stretch a wire (copper wire, PKL, aluminum wire) from the ANT connector
in the box in the expected direction (the direction of signal reception),
in the box in the expected direction (the direction of signal reception),
you can use trees, poles, bamboo poles to supports wire.
The length of the antenna should be greater than 1 wavelength, and its height between 0.5 – 4 m above the ground.
3. At the end of the wire, connect wire to the ANT connector in “Terminator” box and ground rod to the GND connector.
4. That’s it, the antenna is ready!
Technical data:
Coax impedance: 50 / 75 Ω (jumper selectable)
Resistor resistance: 375 / 430 / 460 Ω (jumper selectable)
Protection – high current/voltage
Coax socket: F
Hermetic housing IP65
Stainless steel screws
