Controller 6x1
79 €
Prices include VAT (gross).

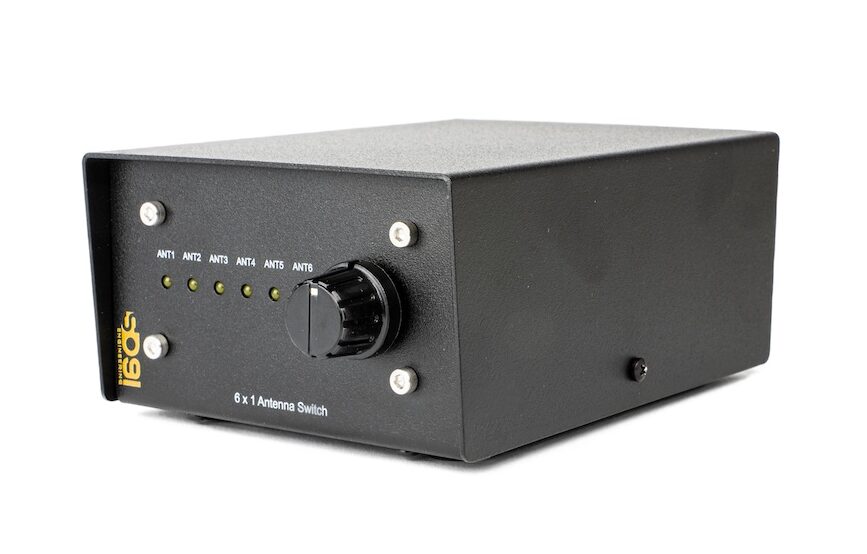

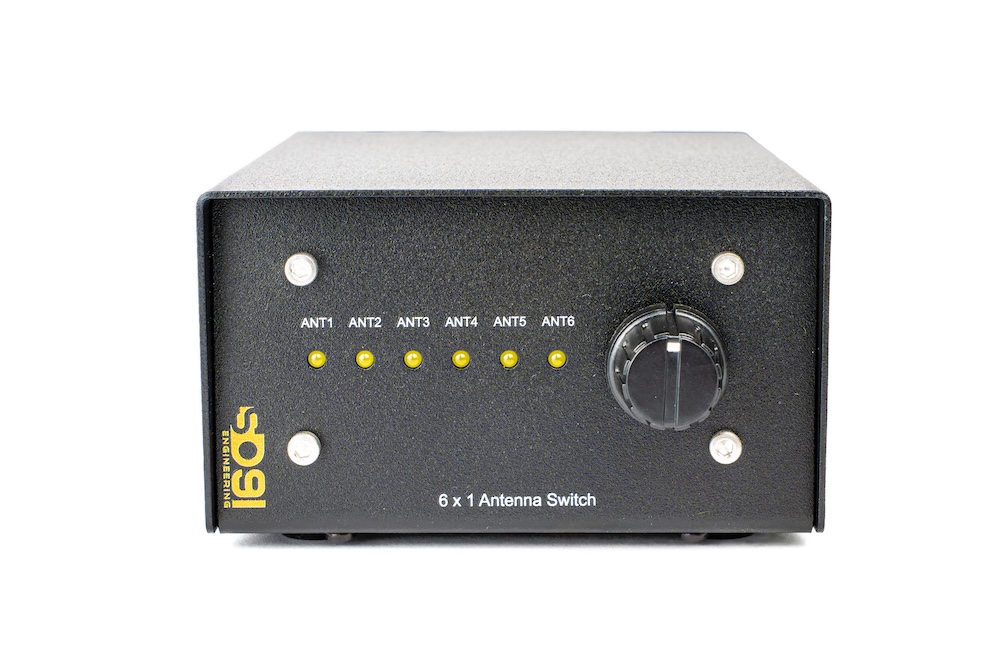

This controller is designed to operate the 6×1 antenna switch. A convenient rotary knob lets you switch antennas instantly, and an LED immediately confirms the selected position — no guessing whether the change actually went through.
Connecting to the switch is done with a plain twisted-pair computer cable through a D-Sub 9-pin connector — simple wiring, no special cables required.
Two Controller 6×1 units can also be used together to drive a 6×2 antenna switch — handy if you already have two of them, or simply prefer that setup over the dedicated Controller 6×2.
Key Features:
- 6 active switch positions
- LED instantly confirms the selected antenna
- Simple twisted-pair cable connection via D-Sub 9-pin
- DC +12V power, 5.5/2.5mm socket
- Two Controller 6×1 units can together drive a 6×2 switch
- Want full automation instead of manual selection? Check out MOAS II
Technical data:
- All switch position: 8
- Used switch position: 6
- Supply voltage: DC +12 V
- Power supply socket: DC 5,5/2,5mm
- Output socket: D-Sub 9pin
- Dimensions: 155 x 107 x 63 mm
- Weight: 550 g
