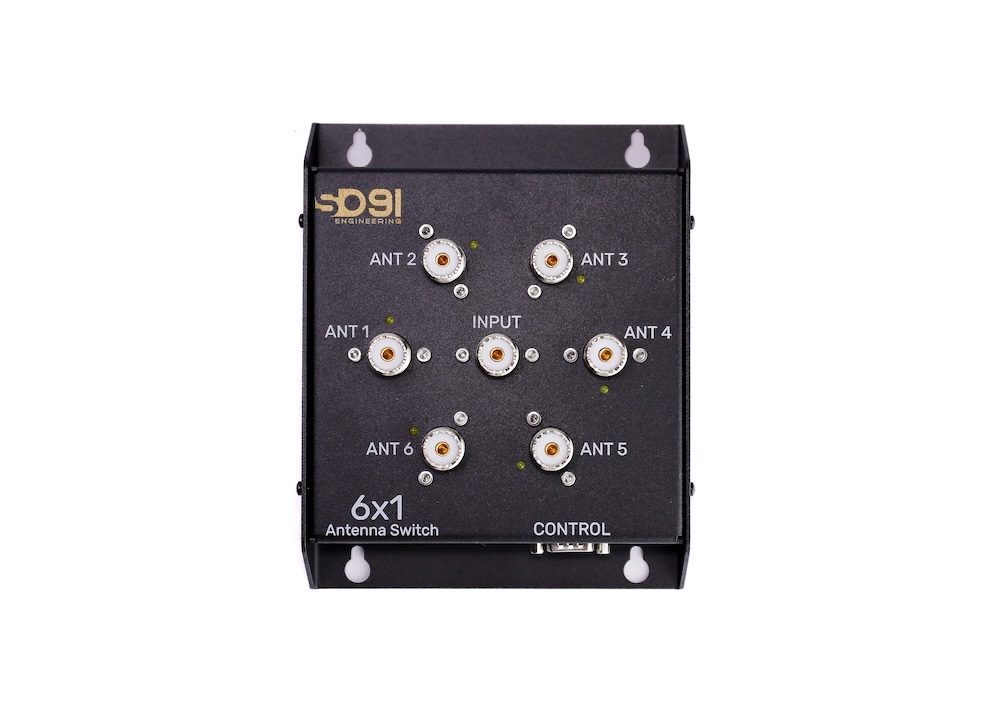

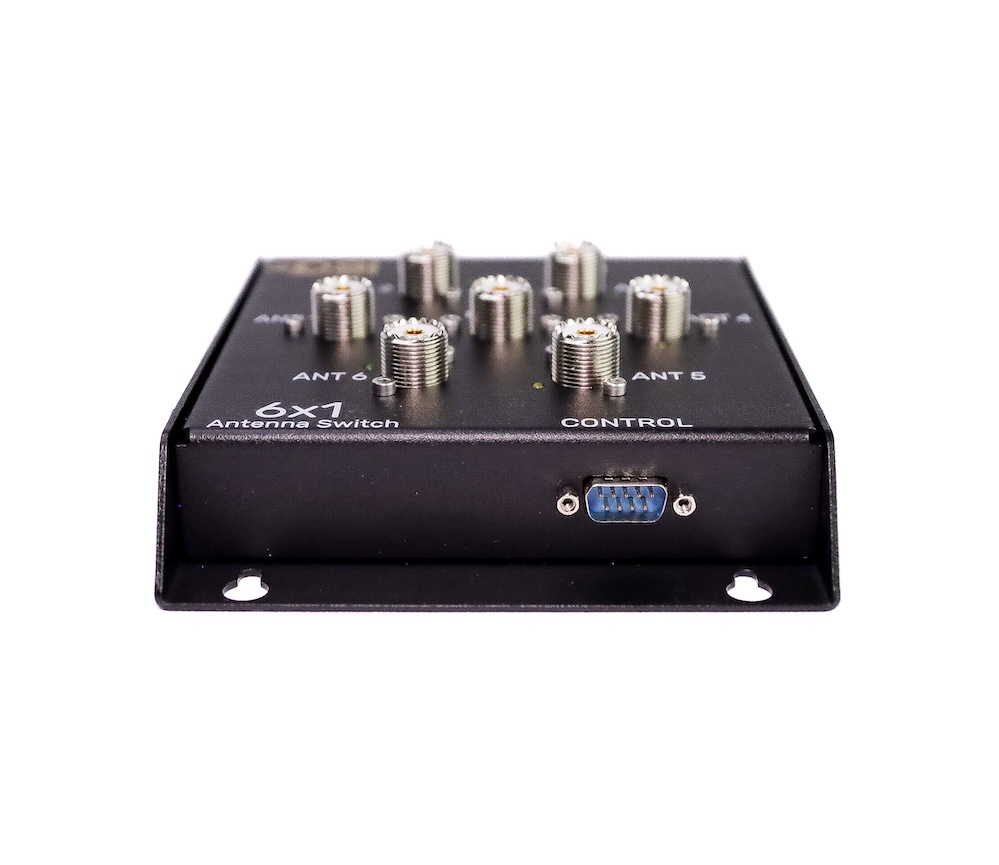

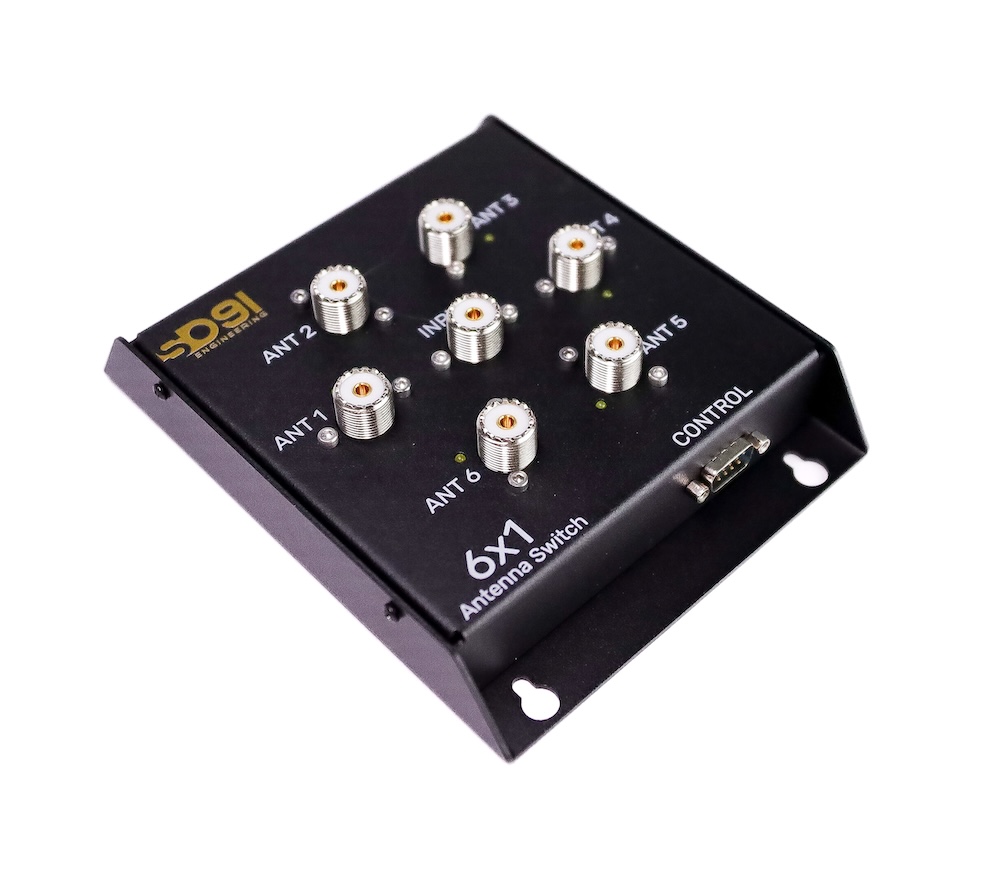

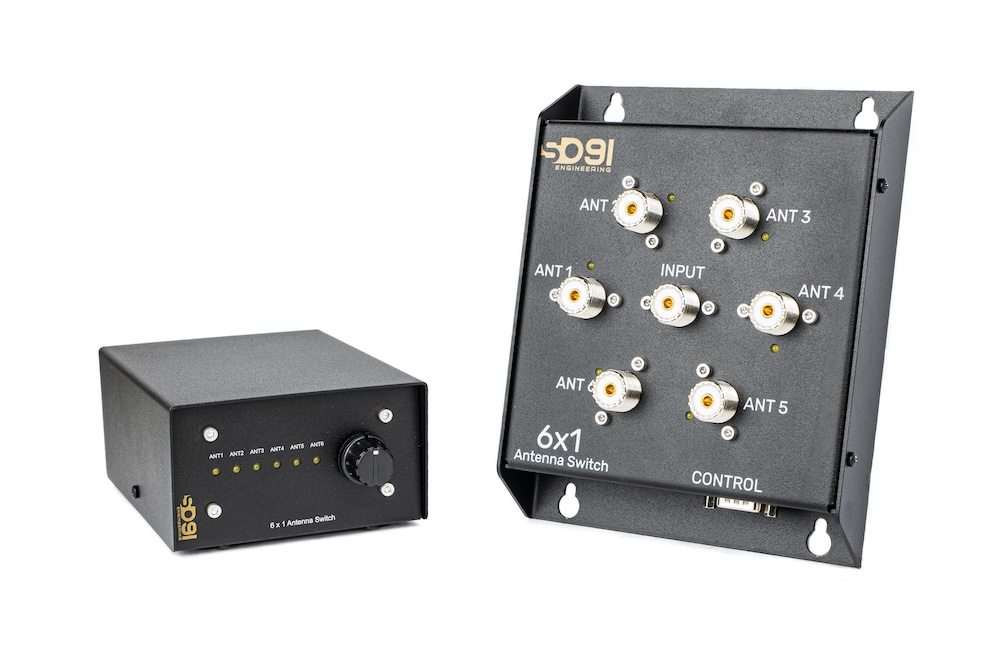

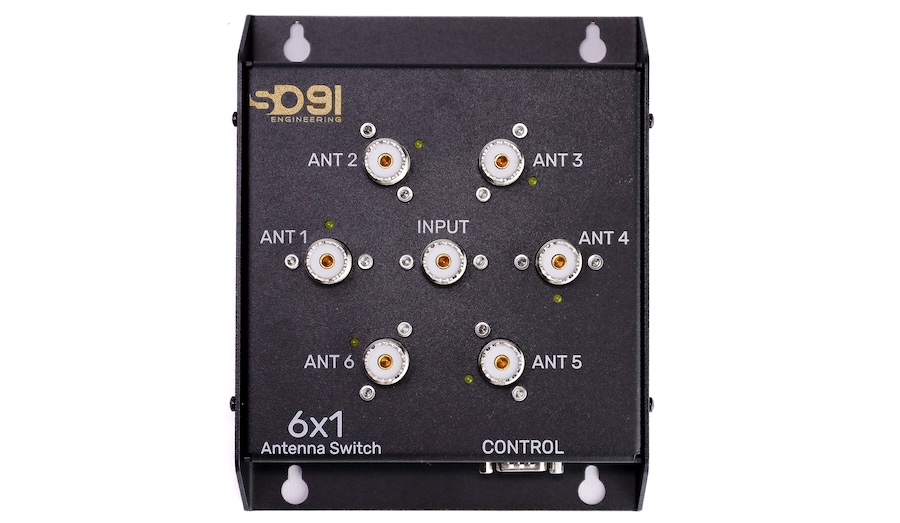

Antenna switch 6x1

100 € without controller



Bestseller and the simplest possible antenna commutator.



Use it when you have more than one antenna on your roof or in your yard. Instead of unscrewing the coaxial cable, just change the position on the rotary switch. The LED will immediately confirm your selection.


A twisted pair computer cable is ideal for communication between the controller and the switch.

Available with UHF and N connectors.

Technical data:
  • Frequency: 1-50 MHz
  • Maximum power: 4 kW
  • Impedance: 50 Ω
  • Maximum SWR: 1:1,1
  • Unused antenna grounded
  • Dimensions:
