Controller 6x2
115 €
Prices include VAT (gross).

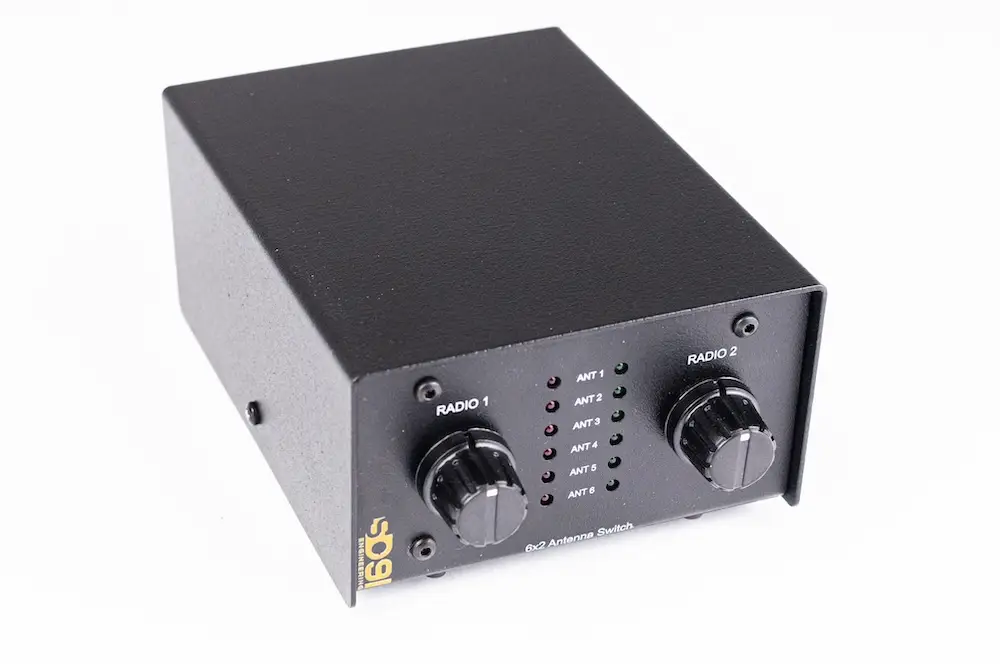

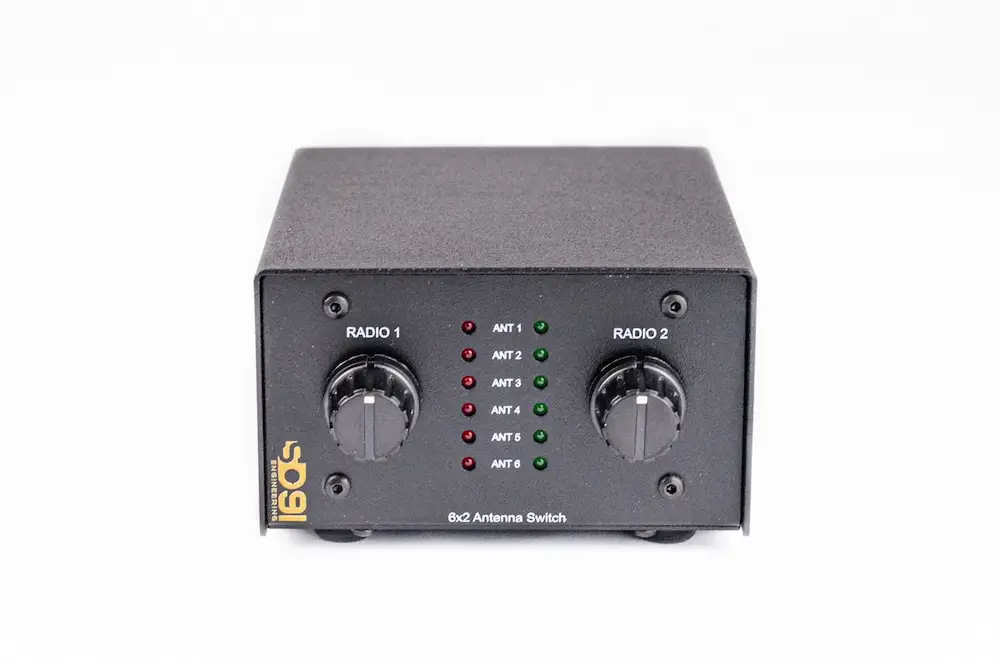

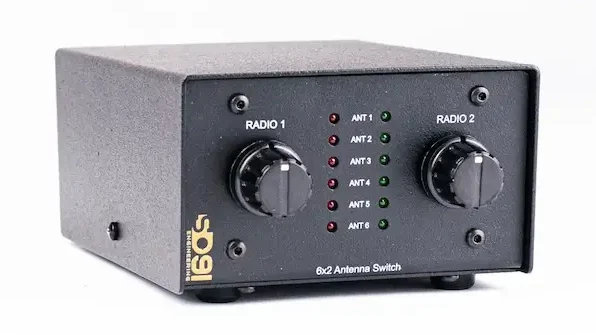

This controller is designed to operate the 6×2 antenna switch. Two independent rotary knobs let each of the two radios pick its own antenna, independently of the other. Red and green LEDs show in real time which antenna is currently connected to which radio.
Inside the controller, a safeguard prevents one radio from accidentally taking over an antenna already in use by the other — a simple rule applies: whichever radio selects an antenna first holds it (first win), until it’s released.
Key Features:
- Two independent knobs — separate antenna selection for each of the two radios
- Red and green LEDs show the currently connected antennas
- “First win” safeguard — an antenna in use by one radio can’t be taken by the other
- Simple twisted-pair cable connection via D-Sub 9-pin
- Want full automation instead? Check out MOAS II
Technical data:
- All switch position: 8
- Used switch position: 6
- Supply voltage: DC +12 V
- Power supply socket: DC 5,5/2,5mm

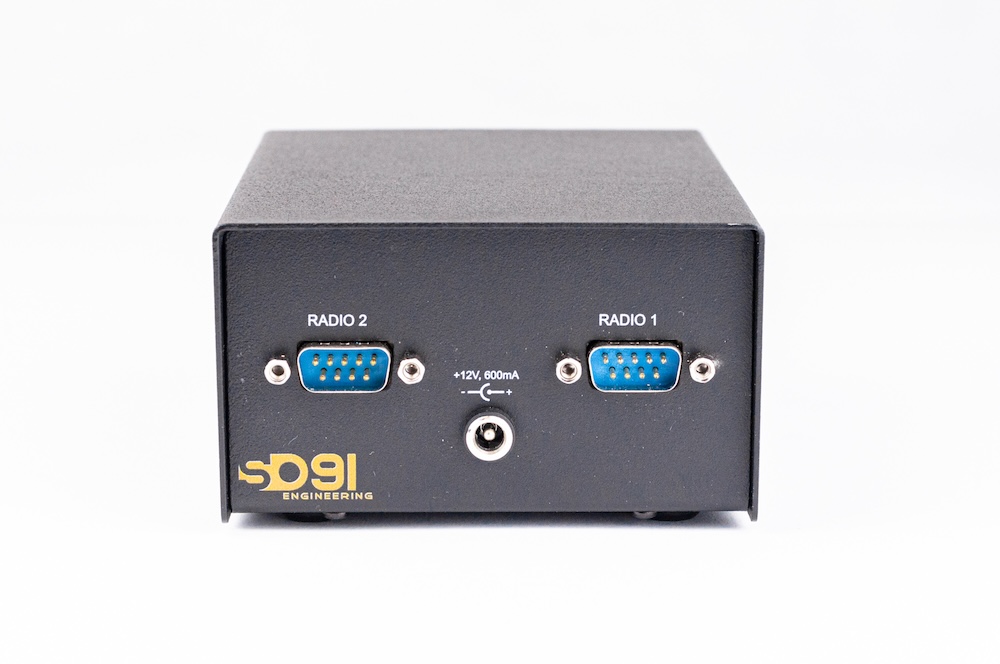

- Output socket: D-Sub 9pin
- Dimensions: 155 x 107 x 63 mm
- Weight: 650 g
