Antenna switch 6x1 outdoor
189 € without controller
268 € with Controller 6x1
Prices include VAT (gross).
Bestseller among outdoor antenna switches. Perfect for when you have more than one antenna on your roof, mast, or in the yard — instead of unscrewing the coaxial cable every time, you select the right antenna remotely.

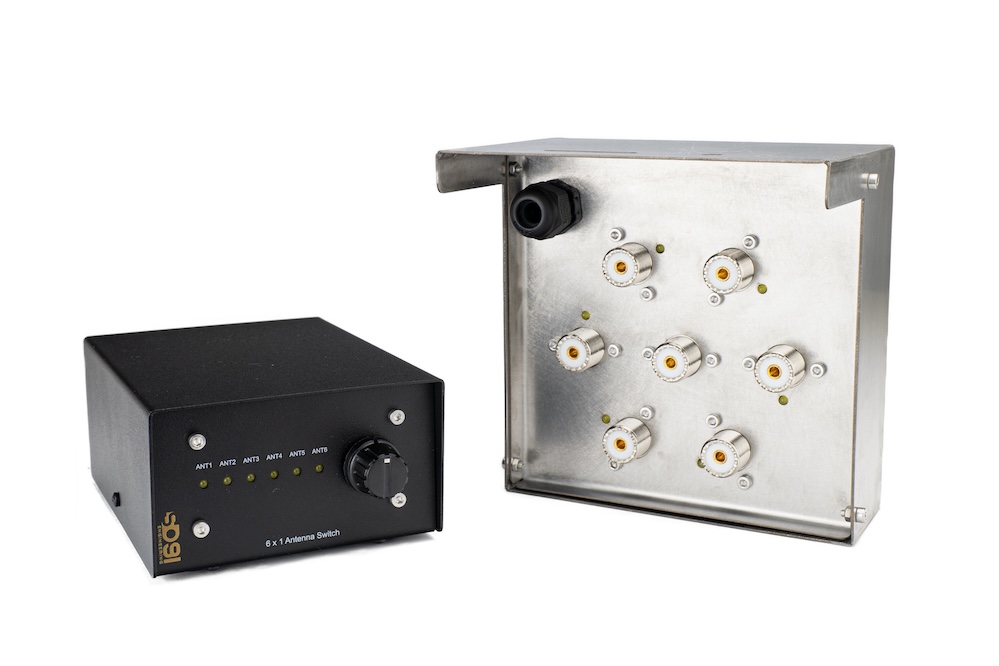

The 6×1 Outdoor switch has an LED at each antenna port, showing immediately which antenna is currently selected. Switching itself is done from the separate Controller 6×1 — with a rotary knob and an additional LED confirming the selected position — or fully automatically by integrating the switch with MOAS II.
The housing is made of stainless steel shaped like a hood, so rainwater drains straight off it, protecting the electronics inside — this lets the switch stay mounted outdoors permanently, right next to the antennas. It has pre-drilled mounting holes for a U-bolt, so it’s ready to hang on a mast right away.
A twisted-pair computer cable is all you need for communication between the controller and the switch — just 7 wires.
- Switches up to 6 antennas from a single transceiver
- LED at each port shows the currently selected antenna
- Stainless steel housing shaped like a hood — rain-resistant
- Unused antennas automatically grounded

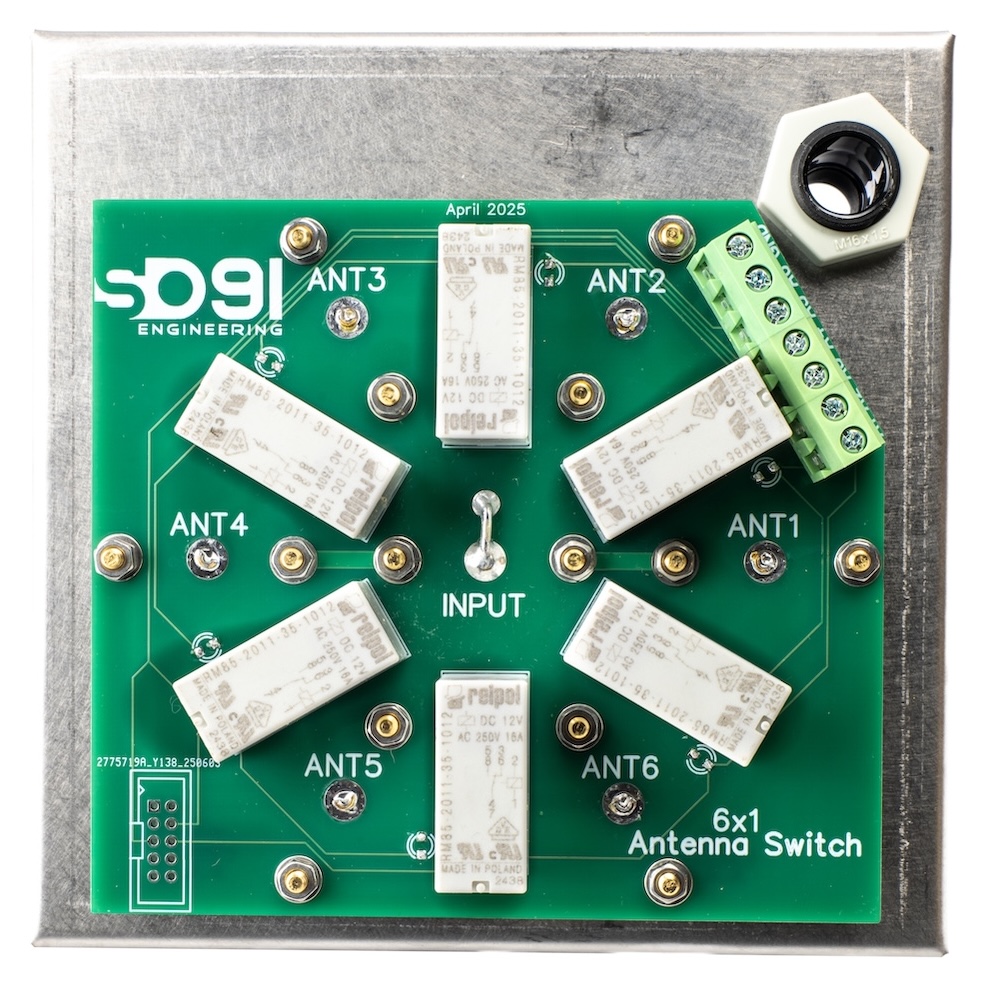

- Reinforced copper layer on the PCB — less heating, greater reliability at 4 kW
- Works with the Controller 6×1 (manual selection) or MOAS II (full automation)
- Available with UHF or N connectors
- Frequency: 1-50 MHz
- Maximum power: 4 kW
- Impedance: 50 Ω
- Maximum SWR: 1:1,1
- Unused antenna grounded
- Housing suitable for outdoor installation
- Dimensions: 146 x 140 x 105 mm
- Weight: 850 g
